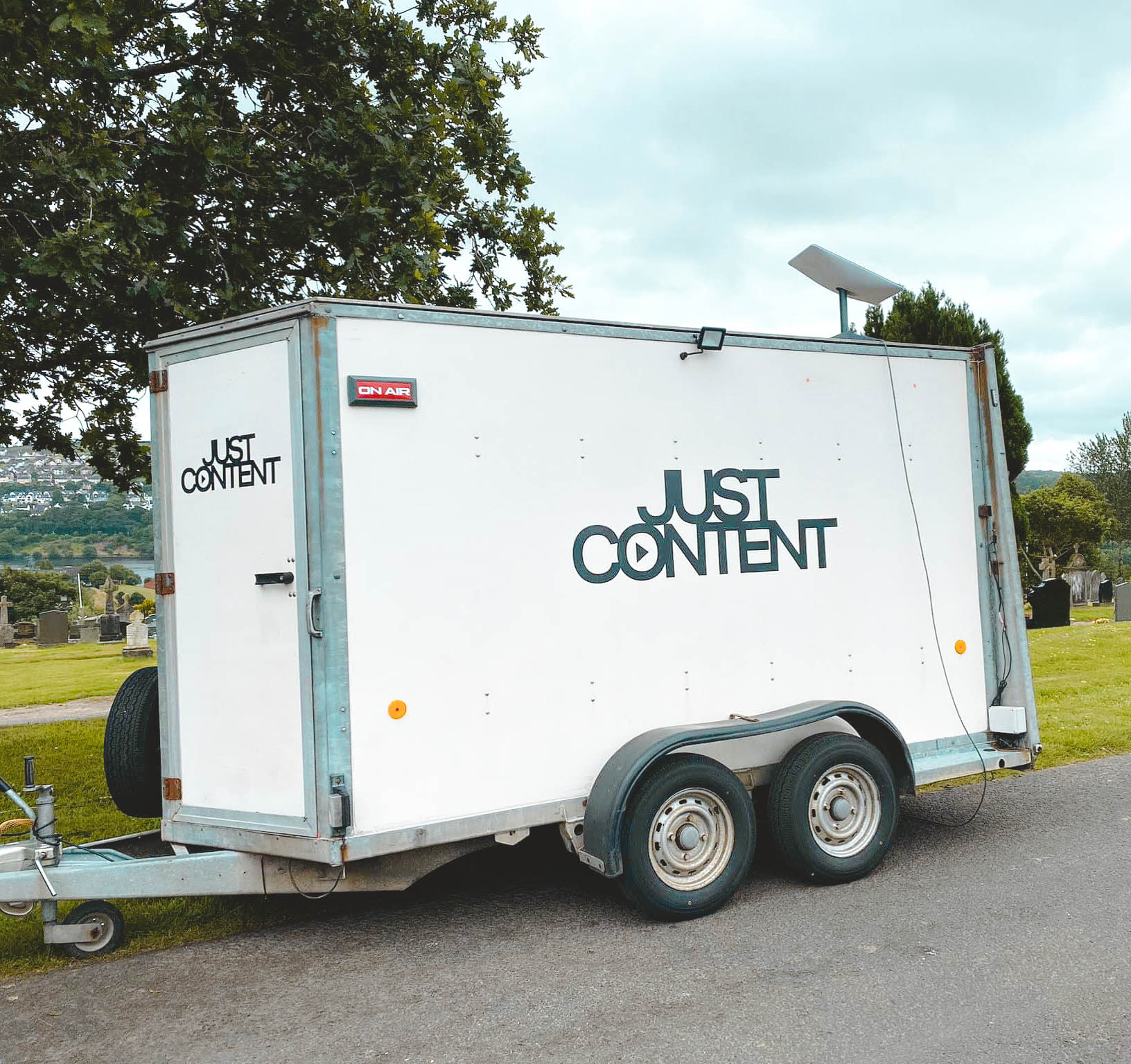

OB Trailer

Specifications

CAMERAS

We stock a selection of Sony Cinema & Alpha Camera’s suitable for upto 4K 60fps productions.

We also have 2 Wireless TX/RX Kits for Full Wireless Cameras.



List Includes (But is not limited to);

  • SONY FX6
  • SONY FX6
  • SONY FS7 II
  • SONY A7 IV
  • SONY A7 III
  • SONY A7S II

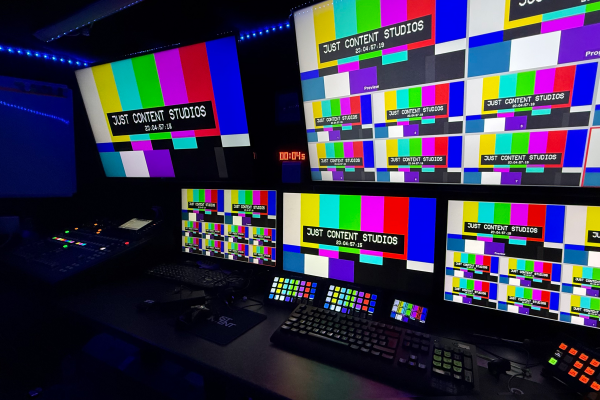

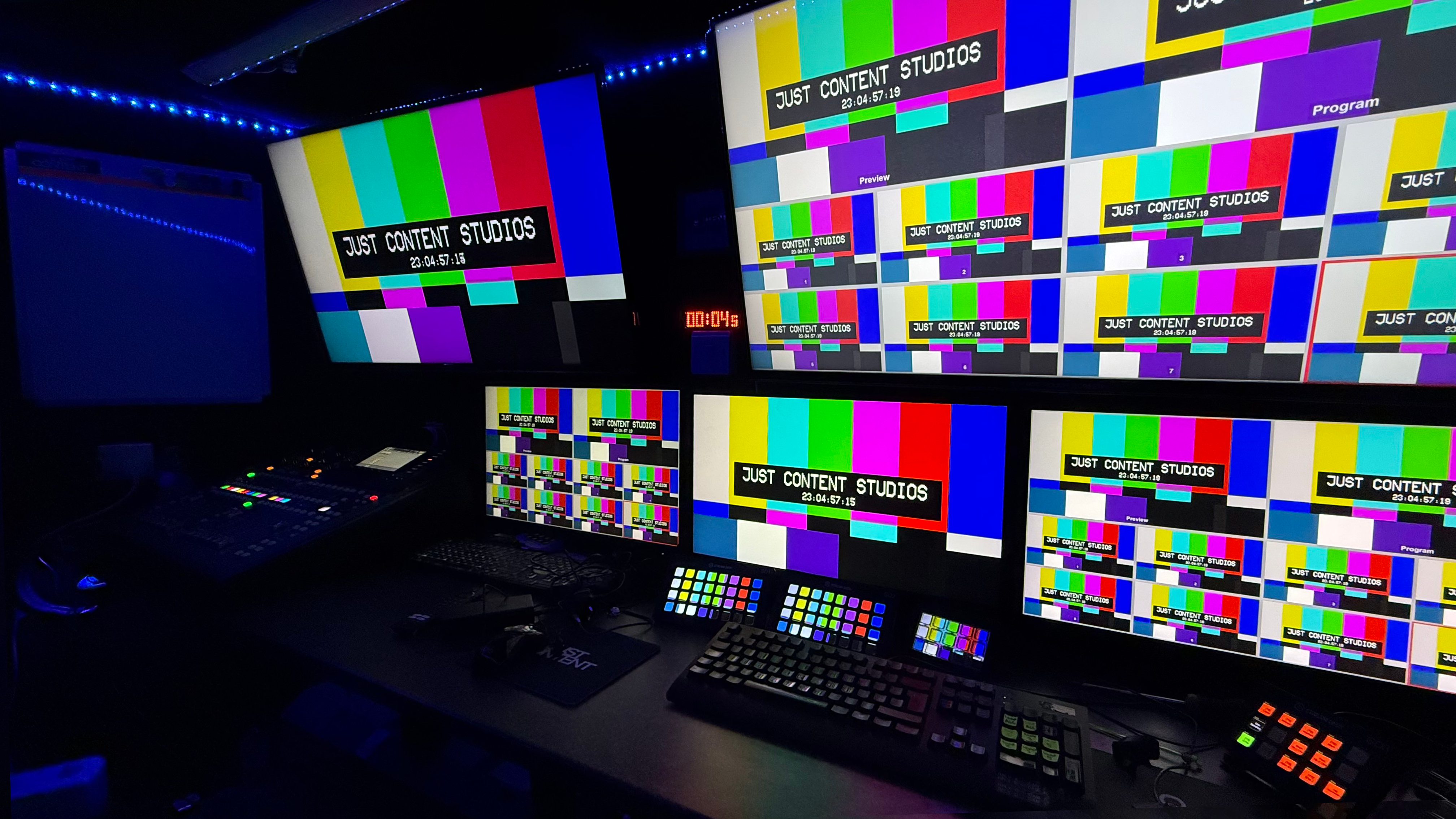

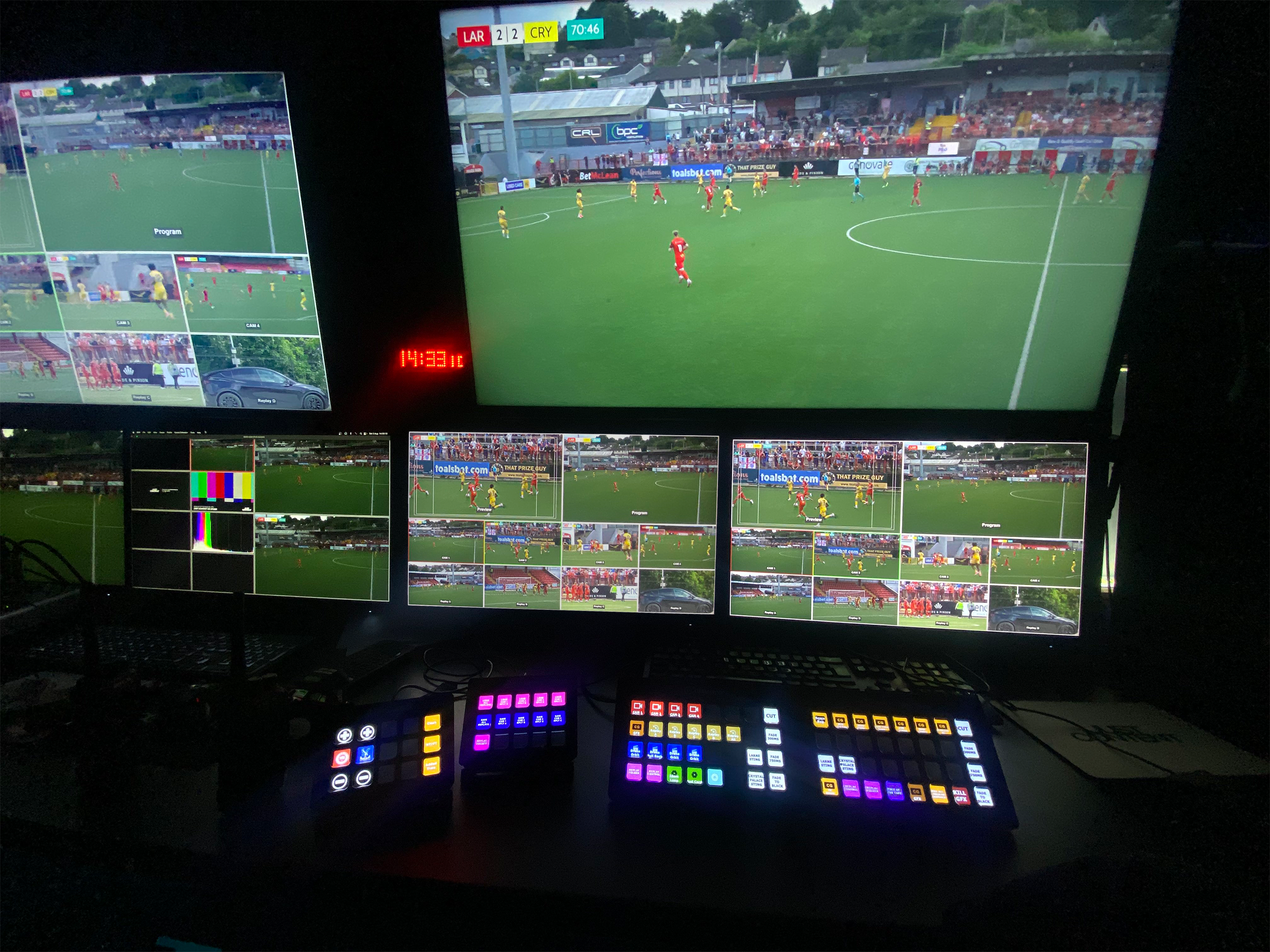

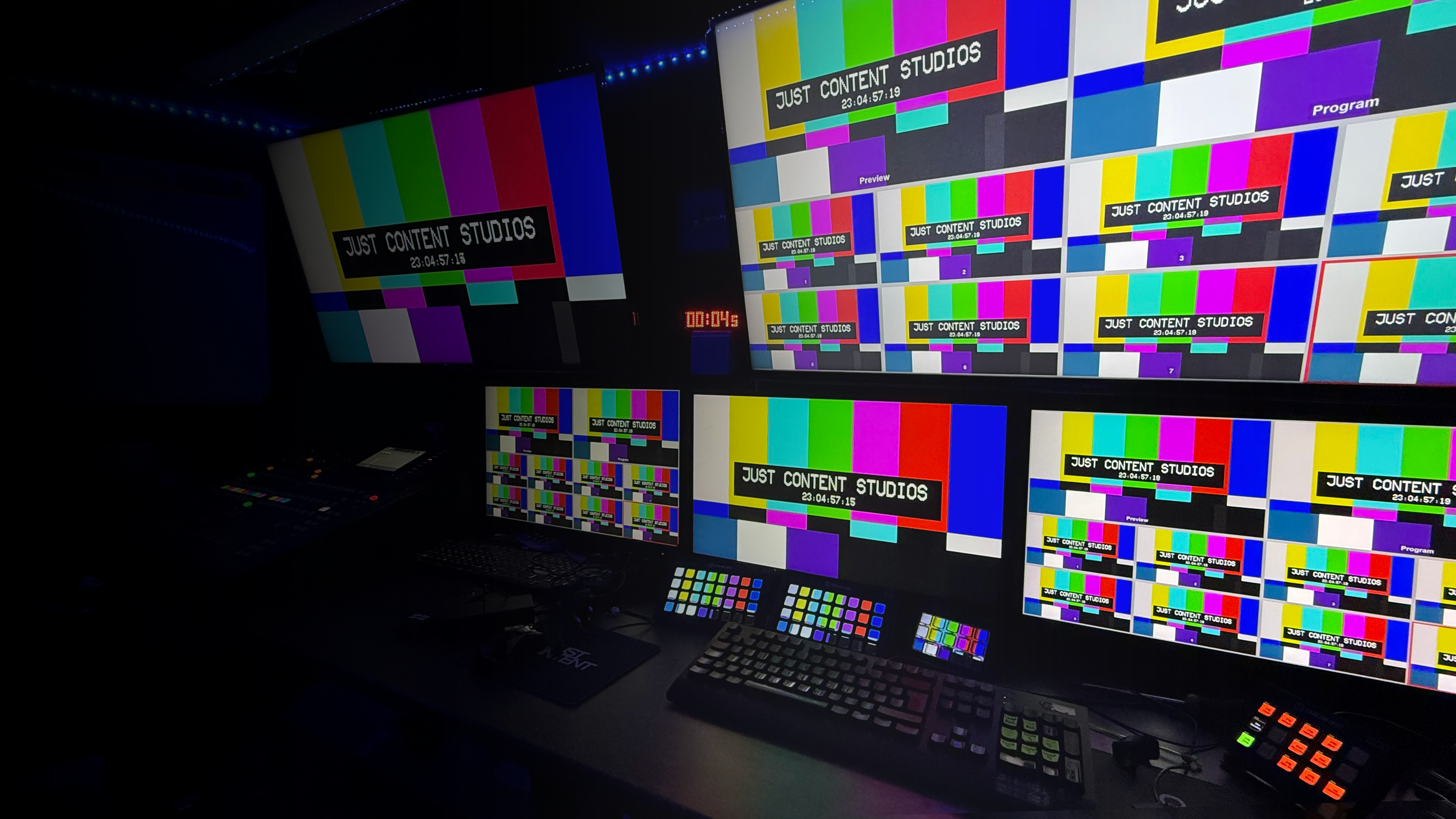

VISION

  • x8 Input Custom Vision Mixing PC
  • V-Mix / OBS Ready
  • HTML & NDI Graphics Ready
  • x6 Elgato Streamdeck Control Surfaces
  • Blackmagic Decklink Monitor 3G for accurate monitoring
  • 4 Replay Channel Ready



Currently we have the OB Trailer in the following configuration, but this can be adapted at request;

  • x3 SMPTE 2110 Inputs
  • x1 12G SDI Input
  • x4 HDMI Inputs



  • x3 SMPTE 2110 Output
  • x2 SDI Output
  • x2 HDMI Output

SOUND

  • Behringer X32 Digital Mixer
    • 32 Input / 16 Output
    • Additional 32 I/O Channels via Dante
  • x2 Yamaha Dante Stagebox with Fibre Convertors
  • x2 Behringer AES50 Stagebox
  • Wide Selection of Microphones
  • Sennheiser Wireless Mic System
  • Wirless & Wired IEM Systems Available

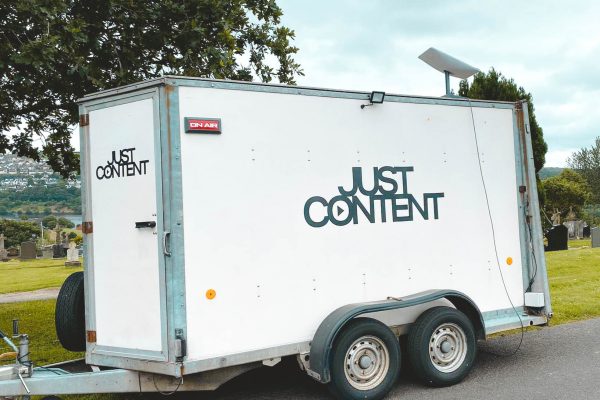

DIMENSIONS

Legnth     4.7 m
Width      2.1 m
Height     2.4 m

UPLINK

  • Dual Encoders with seperate uplink paths to Just Content MCR
  • RTMP Ready
  • SRT Ready
  • Satelite Internet Connection Available for locations with no house network.

POWER

  • x1 32A Single Phase Supply
    • Typical Draw is 12 Amps
  • Onboard UPS
    • Capible of running for 60 minutes at full load
  • Backup Generator Available Where Needed

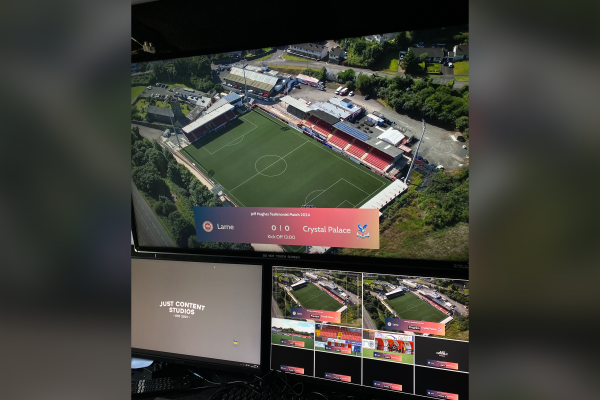

Productions

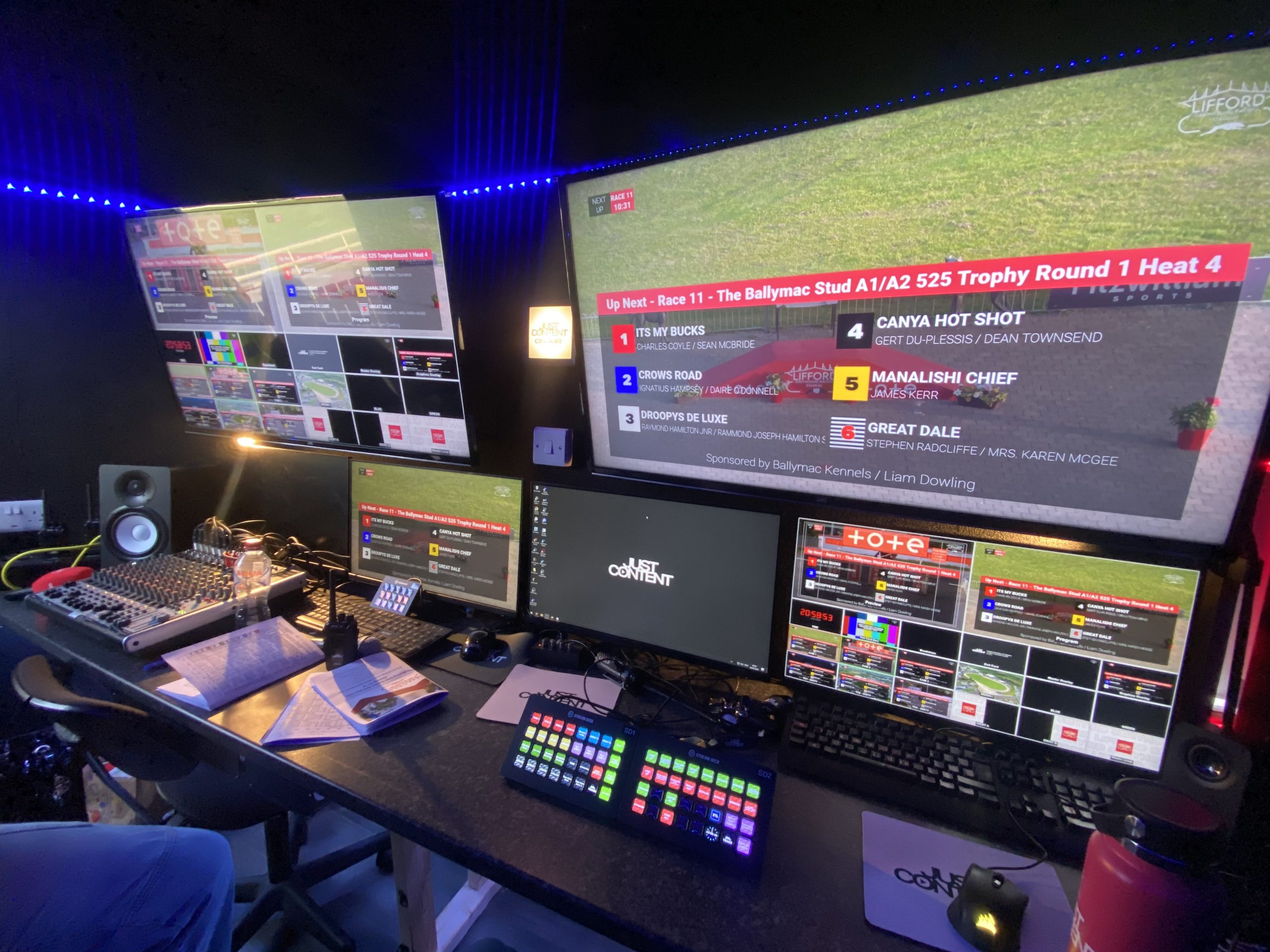

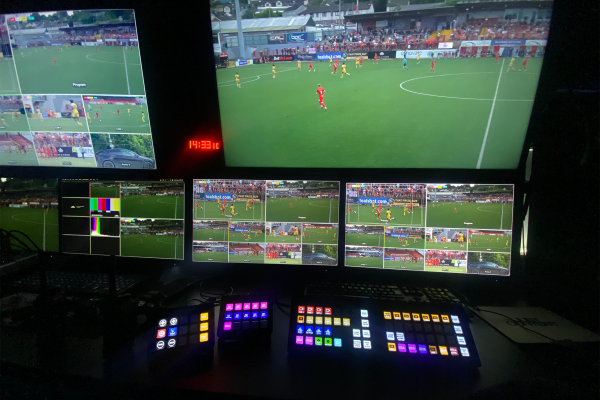

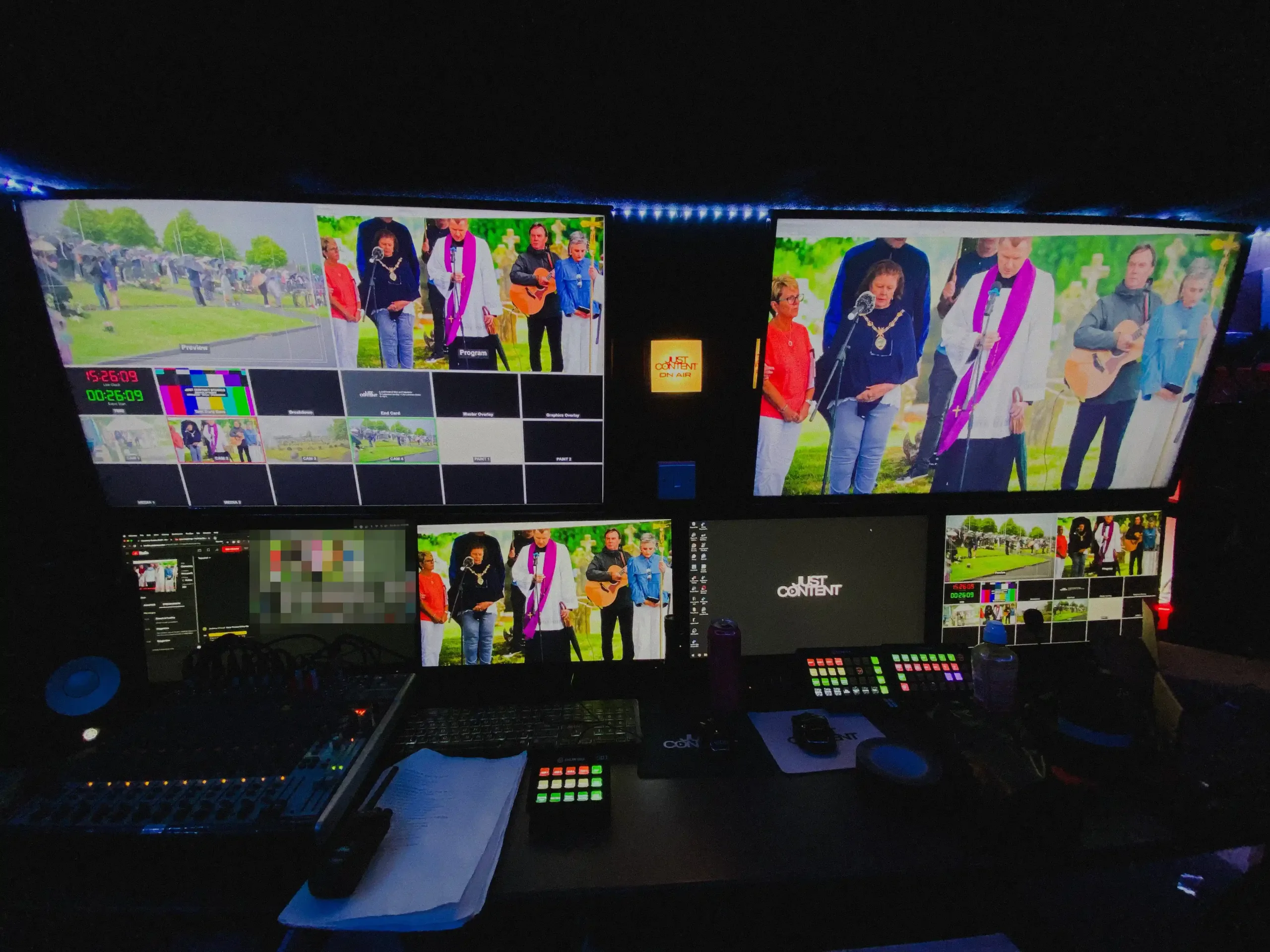

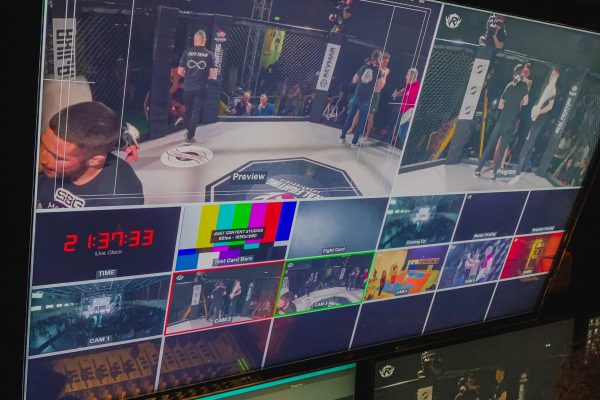

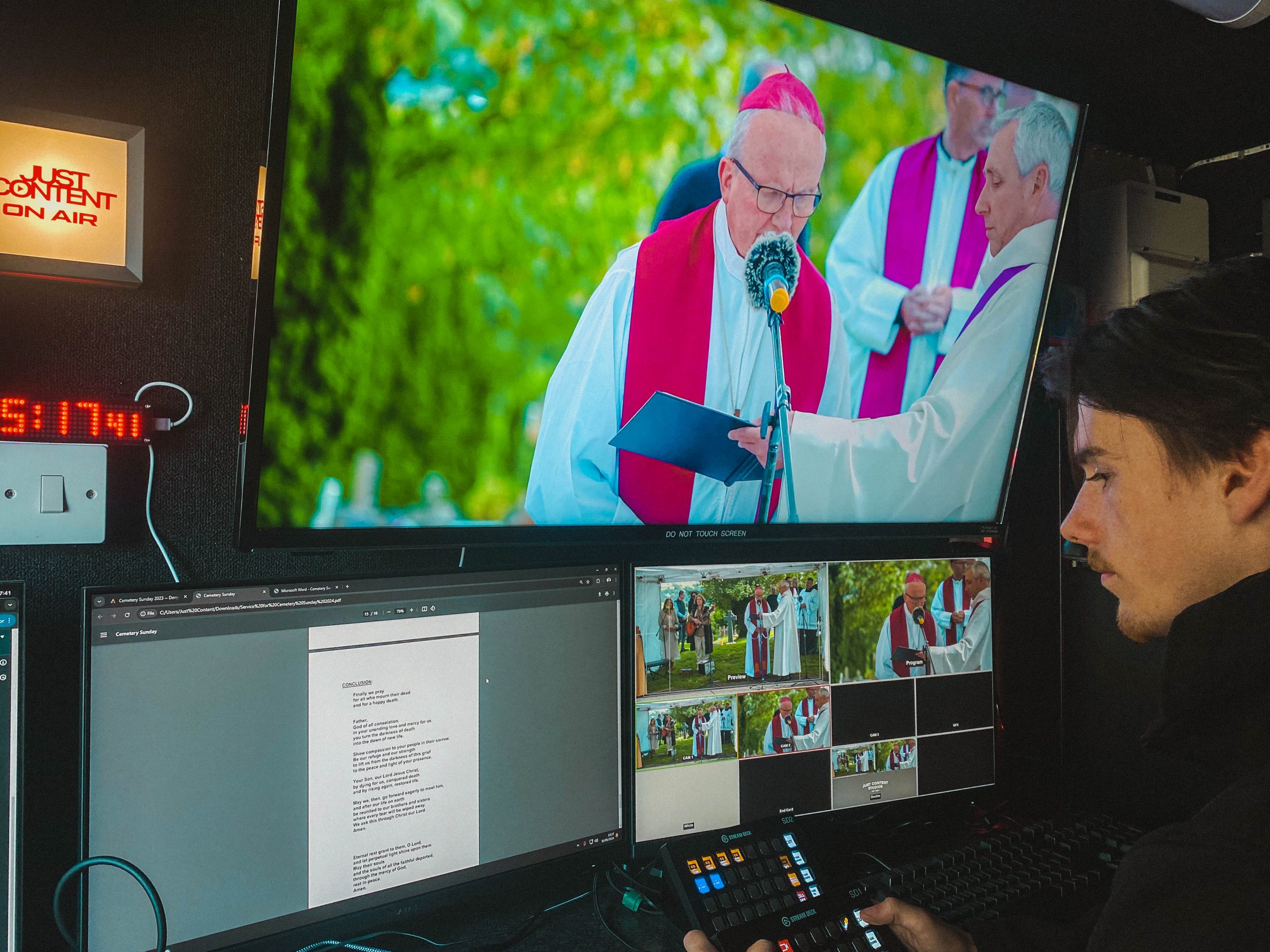

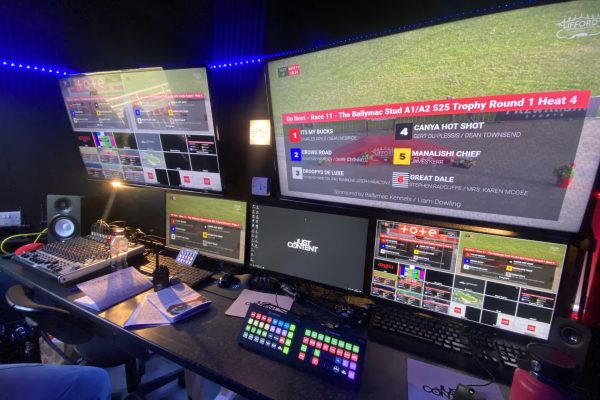

View just some of our productions that we’ve used our OB Trailer on!

Please note, that some of these are files from our MCR Uplink, so may have some pre/post content that is not inteded for airing.

We reccomend you set the quality of any of the video manually to the highest setting (Usually 1080p 50fps) to ensure YouTube shows the full quality of what we can produce!
